Heat Pump and Organic Rankine Cycles
Heat Pump
For heat pumps of this simple structure (so far).

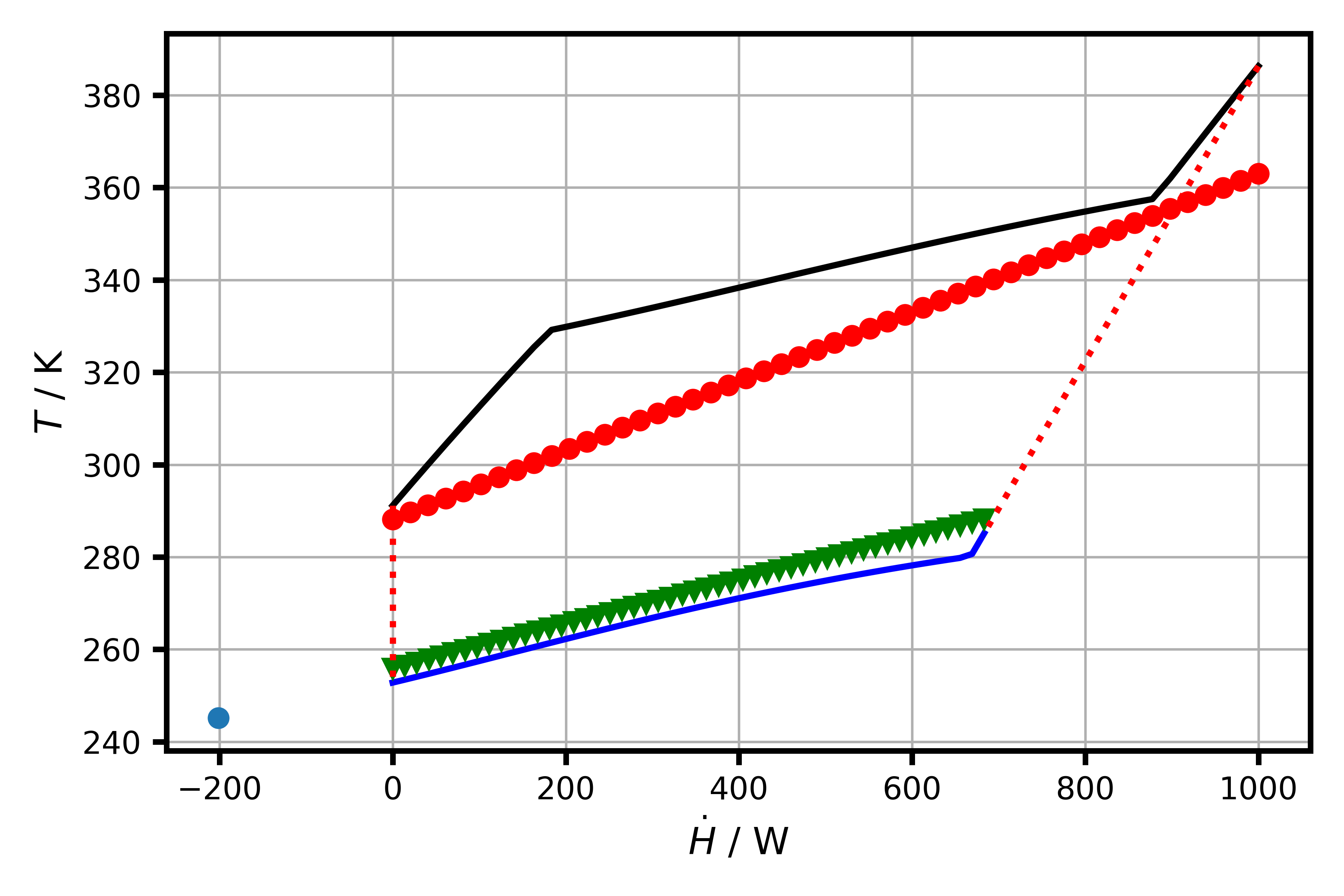

As one of the outputs, one gets such plots:
The jupyter-notebook (there may be installation errors shown, if Refprop and Trend are not installed)
Organic Rankine Cycle

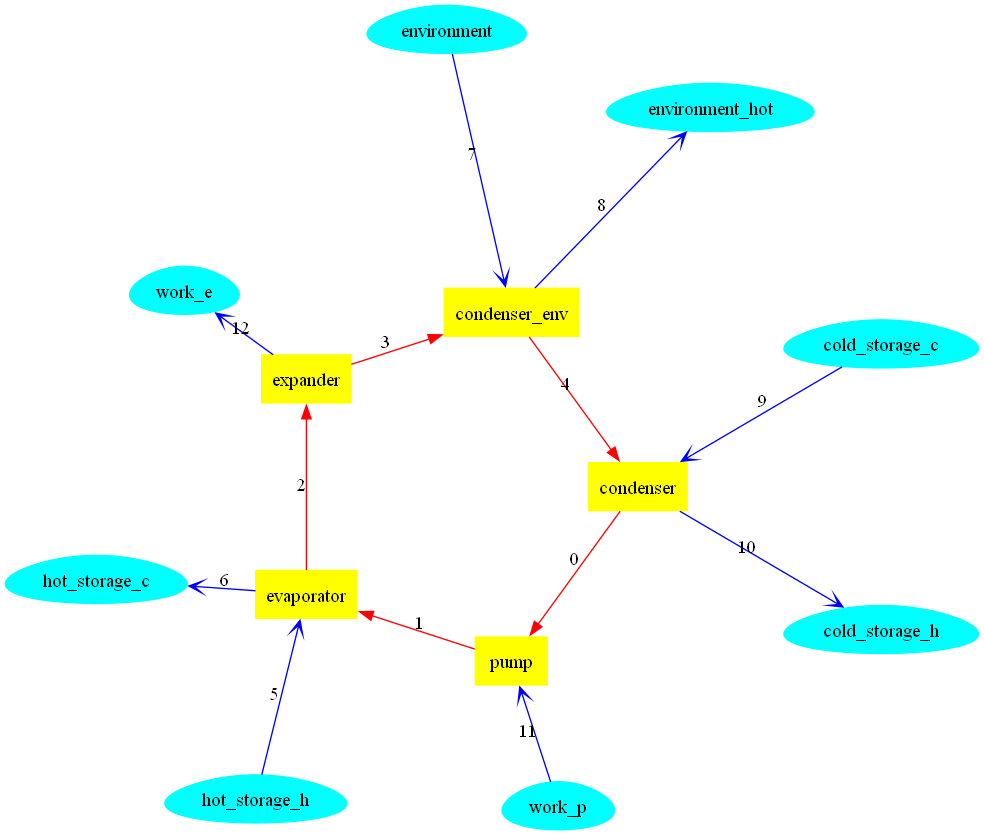

Organic Rankine cycles with this structure are modelled:

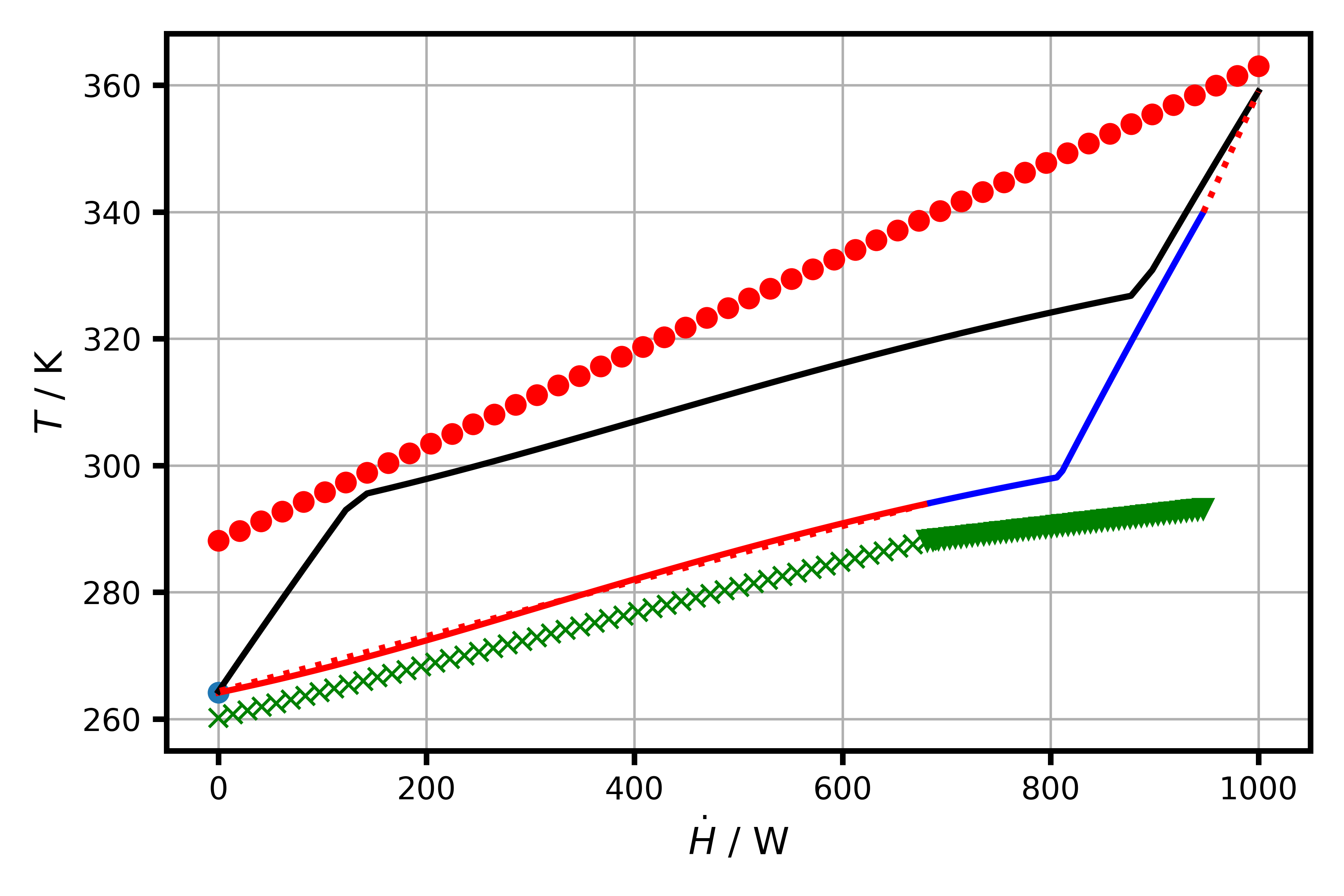

Typical results (here for a mixture) look like this:
Cycle Structure

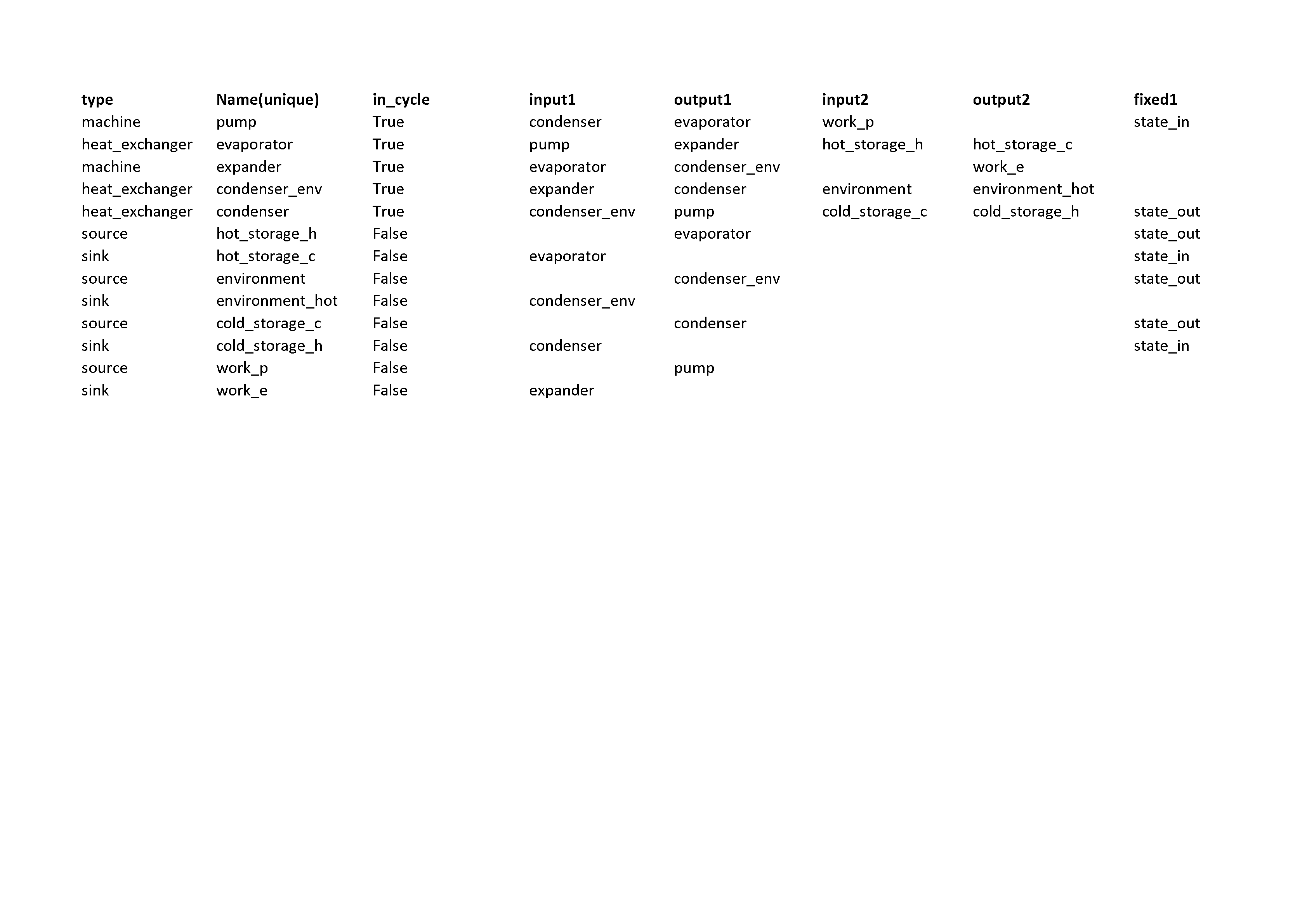

The structure of cycles are read from excel files , to create the structure plot, as shown above. graphviz must be installed on the computer to use this script. An exemplary excel-file is found in the data-folder. Here is the first page of it.
